Joen Lih Surface & Profile Grinders

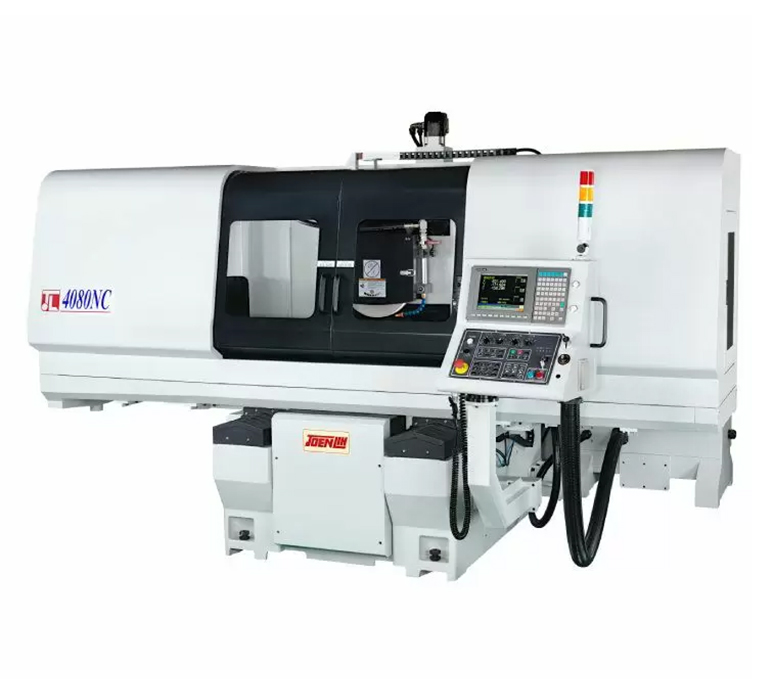

CNC Surface & Profile Grinders
CNC Surface and Profile Grinding Machine is a high-precision machining equipment used in the manufacturing of metal parts, tool and die, and other precision components. Controlled by a computer, our CNC Surface and Profile Grinding Machine can achieve intricate shapes and highly precise machining.
Main Specifications
| Model | Structure Type | Control Type | Max. Surface Ground | Spindle to Table Distance | Spindle Motor | Machine Net Weight |
|---|---|---|---|---|---|---|
| JL-2550CNC | Saddle Type | CNC — Siemens SINUMERIK 810D (or Fanuc Oi-MC) 2~5 axes simultaneous | 250×500 mm (10"×20") | 470 mm (18.8") | 12 HP | 1,800 kg |
| JL-300CDG | Column Type (Rotary Table) | CNC — Siemens / Fanuc / Syntec 3-axis (X/Y/Z) servo control | Table: 500×1000 mm | 730 mm | 20 HP | 10,000 kg |
| JL-5010CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 500×1000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 10,000 kg |
| JL-6010CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 600×1000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 10,000 kg |
| JL-5015CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 500×1500 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 11,250 kg |
| JL-6015CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 600×1500 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 11,250 kg |
| JL-5020CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 500×2000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 12,500 kg |
| JL-6020CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 600×2000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 12,500 kg |
| JL-5030CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 500×3000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 16,000 kg |
| JL-6030CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 600×3000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 16,000 kg |
| JL-5040CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 500×4000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 19,500 kg |
| JL-6040CNC-H / -B | Column Type (Traveling Column) | CNC — Siemens / Fanuc / Syntec 3-axis servo H=Hydraulic / B=Ballscrew | 600×4000 mm | 600 mm | 10 HP (Opt. up to 25 HP) | 19,500 kg |
