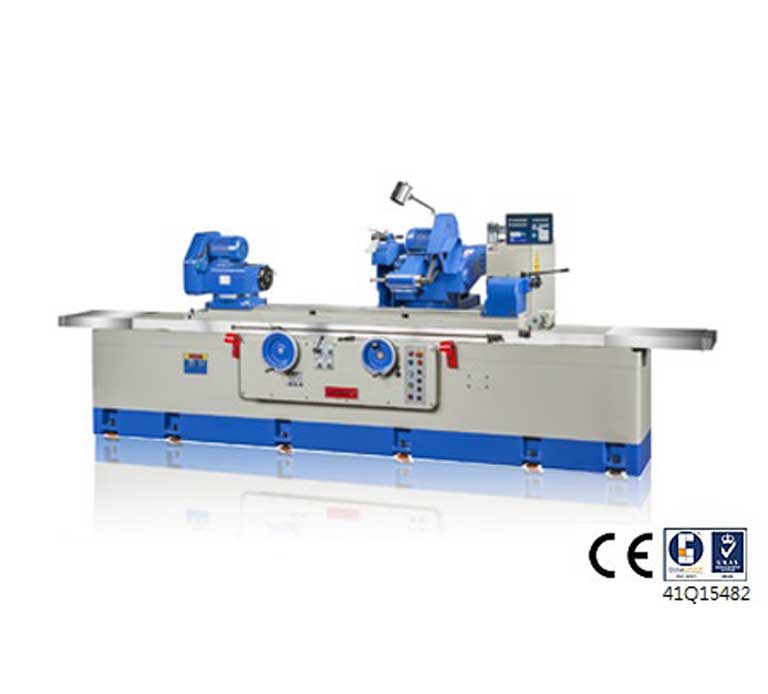

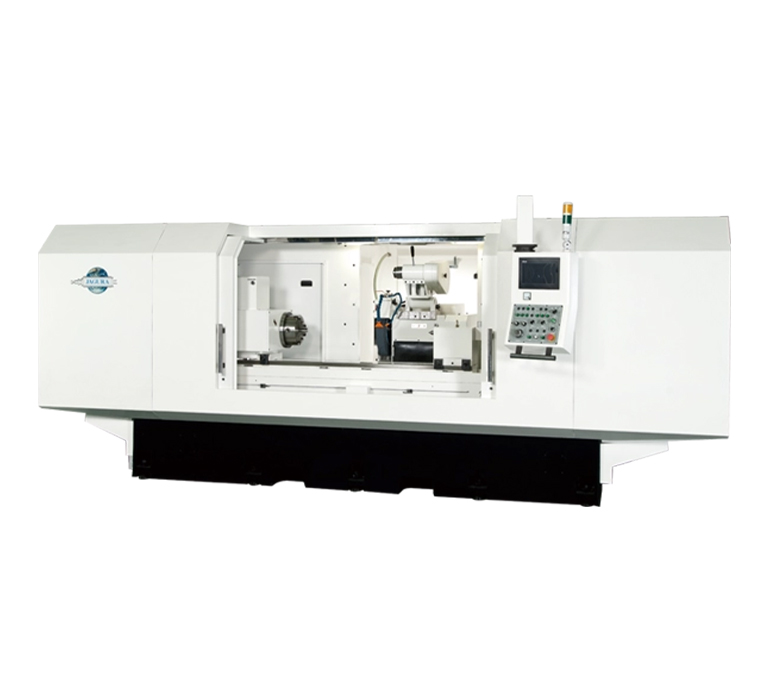

Cylindrical Grinders

The design principle of Jagura Cylindrical Grinding Machine Series is emphasized on operation ability and working function. The full series provide users with total solutions to completely satisfy all users' requirements. The full series is complete with several models which are equipped with various center distances and center heights. Especially, the control system is equipped with our own dialog operation interface. It makes operation very easy.

Main Specifications

Model	Max. swivel over table	Max. dist. between centers	Max. ext. grinding dia	Max. load of centers	Grinding wheel OD×W×ID	Grinding wheel motor	Gross weight (approx.)
CG175	120 mm	175 mm	120 mm	—	200×19×31.75 mm	1.5 HP	610–1200 kg
CG2535	250 mm	350 mm	250 mm	80 kg	355×38×101.6 mm	5 HP	2500–2550 kg
CG2550	250 mm	500 mm	250 mm	80 kg	355×38×101.6 mm	5 HP	2700–2750 kg
CG2575	250 mm	750 mm	250 mm	80 kg	355×38×101.6 mm	5 HP	3000–3050 kg
CG3240	320 mm	400 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	2750–2800 kg
CG3250	320 mm	500 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	2850–2900 kg
CG3260	320 mm	600 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	3000–3050 kg
CG3275	320 mm	750 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	3200–3250 kg
CG32100	320 mm	1000 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	5980 kg
CG32120	320 mm	1200 mm	320 mm	120 kg	405×56×127 mm	7.5 HP	6100 kg
CGA2535	250 mm	350 mm	250 mm	80 kg	455×50×152.4 mm	7.5 HP	4100 kg
CGA2550	250 mm	500 mm	250 mm	80 kg	455×50×152.4 mm	7.5 HP	4500 kg
CGA3545	350 mm	450 mm	350 mm	120 kg	510×80×152.4 mm	15 HP	5500 kg
CGA3565	350 mm	650 mm	350 mm	120 kg	510×80×152.4 mm	15 HP	5800 kg

(CG175=Micro · CG25xx=Ø250mm · CG32xx=Ø320mm · CGA=Angular type | AL/NC1/Easy CNC/CNC variants available per model)
