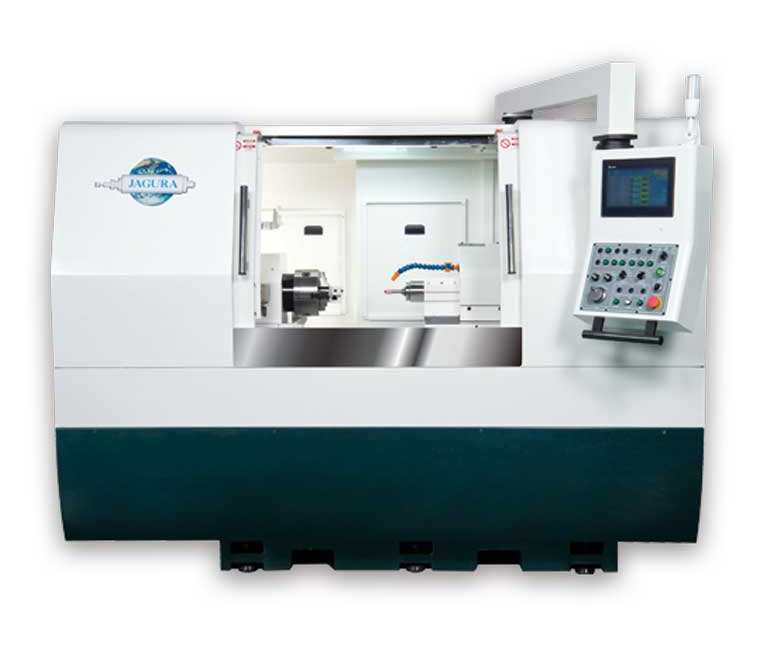

Internal & Cylindrical Grinders

The most important feature of Jagura CNC internal & cylindrical grinding machine is the grinding unit can be designed according to the customer's workpiece. Customized design ability is what we are most proud of. In the application of internal grinding, external grinding and end-face grinding, Jagura provides the total solutions to customers.

Main Specifications

Machine Model	CNC Axes	No. of Internal Spindles	Clamping Diameter	Max. Clamped Unit Length	Max. Grinding Length	Spindle Speed - ID	Spindle Speed - OD	C-axis Indexing	Workhead Motor	Spindle Motor (ID/OD)	Working Range (Inner Hole)	Weight
ICG-S200	2-axis (X:Z)	2 (ID)	150 mm	120 mm	—	0–55,000 RPM ×2	—	0.001°	1 HP	1HP×2	Ø 1.5–80 mm	~2200 kg
ICG-SL200	2-axis (X:Z)	2 (ID)	200 mm	120 mm	—	0–55,000 RPM ×2	—	0.001°	1 HP	1HP×2	Ø 1.5–80 mm	~2900 kg

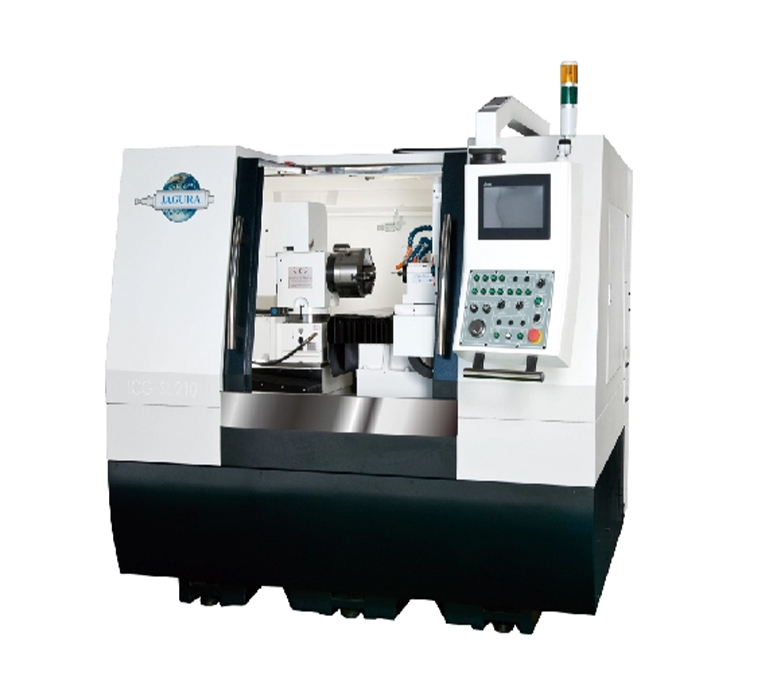

ICG-SL210	3-axis (X:Z1:Z2)	2ID + 1OD	200 mm	150 mm	—	0–55,000 RPM ×2	0–3400 RPM	0.001°	1 HP	1HP×2 / 1.5HP×1	Ø 1.5–80 mm	5200 kg
ICG-SL410	3-axis (X:Z1:Z2)	4ID + 1OD	200 mm	150 mm	—	0–55,000 RPM ×4	0–3400 RPM	0.001°	1 HP	1HP×4 / 1.5HP×1	Ø 1.5–80 mm	6000 kg
ICG-1512 SL11	3-axis (X:Z1:Z2)	1ID + 1OD	150 mm	230 mm	120 mm	10K–50K RPM	3440 RPM	—	1 HP	3HP/3HP	—	~4000 kg
ICG-1512 SL20	3-axis (X:Z1:Z2)	1ID + 1OD	150 mm	230 mm	120 mm	10K–50K RPM	3440 RPM	Opt.	1 HP	2HP/2HP	—	~3800 kg
ICG-2012 SL11	3-axis (X:Z1:Z2)	1ID + 1OD	200 mm	230 mm	120 mm	10K–50K RPM	3440 RPM	Opt.	2 HP	2HP/2HP	—	~4150 kg
ICG-2012 SL20	3-axis (X:Z1:Z2)	1ID + 1OD	200 mm	230 mm	120 mm	10K–50K RPM	3440 RPM	Opt.	2 HP	2HP/2HP	—	~4450 kg
ICG-2012 SL21	3-axis (X:Z1:Z2)	1ID + 1OD	200 mm	230 mm	200 mm	10K–50K RPM	3440 RPM	Opt.	2 HP	2HP/2HP	—	~4250 kg
ICG-2512 SL11	3-axis (X:Z1:Z2)	1ID + 1OD	250 mm	—	120 mm	10K–50K RPM	3440 RPM	—	2 HP	2HP/2HP	—	~4350 kg
ICG-2512 SL20	3-axis (X:Z1:Z2)	1ID + 1OD	250 mm	—	200 mm	10K–50K RPM	3440 RPM	—	2 HP	2HP/2HP	—	~4650 kg

Carbide Die = complex profile grinding for dies · In-Line = ID/OD/end-face grinding | All: CNC · 3-axis X/Z1/Z2)
