Shimada Lathes and Bar Machines

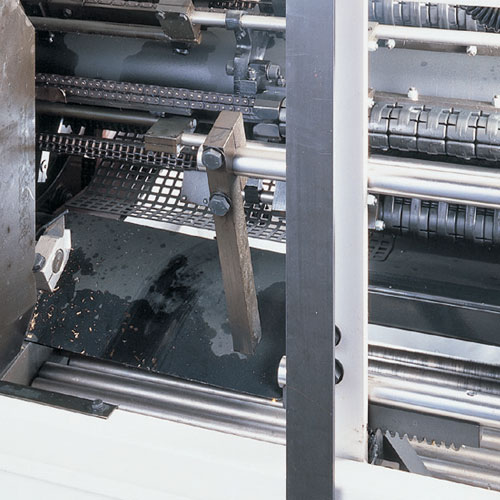

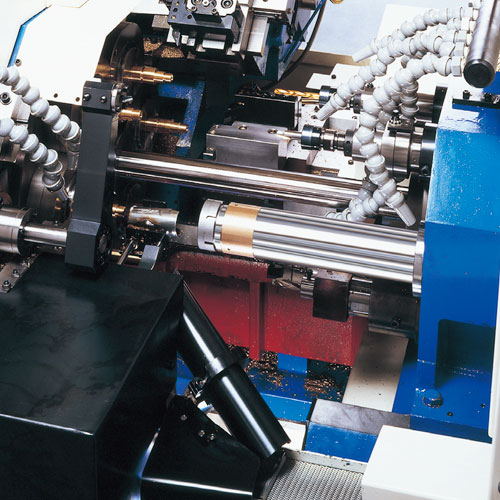

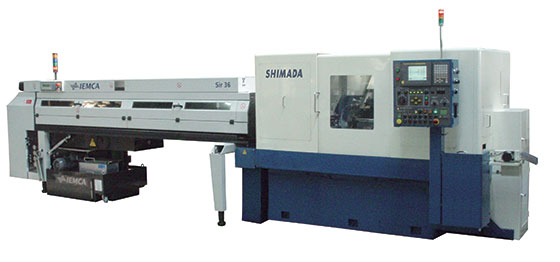

B6 Series Cam-Less 6-Spindle Automatic Bar Machine with CNC Slides -
Turning bar material is considered time- and space-consuming. Shimada challenges that belief with high-speed turning using 6 spindles.
• Turning is possible up to a maximum diameter of 16mm (.63"), 27mm (1.06") and 32mm (1.26")

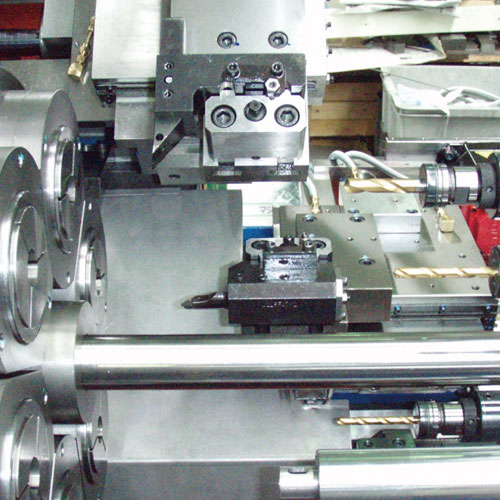

• Three NC slides can be mounted
• Saves space, energy, and manpower

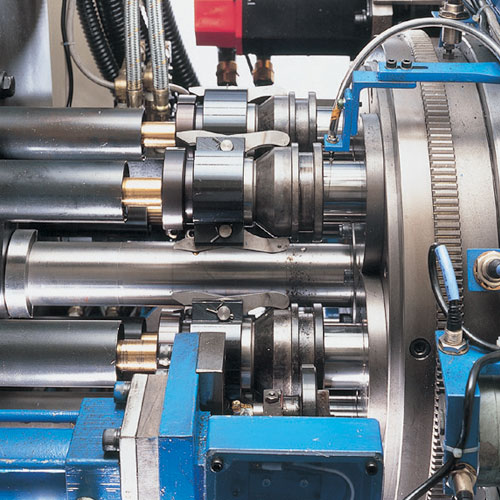

• Integrated spindle motors are available for spindle stopping and C-Axis positioning, as well as constant surface footage
Main Specifications
| Model | B6-16 | B6-27 | B6-32 | ISM B6-27 with Integrated spindle motors |
|---|---|---|---|---|
| Spindle | ||||
| No. of Spindles | 6 | 6 | 6 | 6 |
| Spindle Diameter | 55 mm (2.2") | 70mm (2.8") | 70mm (2.8") | 80mm (3.15") |
| Max. Spindle Speed | 5,000rpm | 3,000rpm | 3,000rpm | 5,000rpm |
| C axis Control | N/A | N/A | N/A | Standard |
| Motor | 11kw (14.7hp) | 11kw (14.7hp) | 11kw (14.7hp) | 6kw (8.0hp) |
| Number of Motors | 1 | 1 | 1 | 6 |
| Bar Capability | ||||
| Max. Bar Diameter | 16mm (0.63") | 27mm (1.06") | 32mm (1.26") | 27mm (1.06") |
| Max. Feed Length | 120mm (4.7") | 120mm (4.7") | 120mm(4.7") | 120mm (4.7") |
| Max. Bar Length | 3.3 M (130") Option : 4.3 M (170") |
3.3M (130") Option : 4.3M (170") |
3.3M (130") Option : 4.3M (170") |
3.3M (134") Option : 4M (157") |
| End Tool Slide | ||||
| Drive System | Camless-Hydraulic Option : NC servo |
Camless-Hydraulic Option : NC Servo |
Camless-Hydraulic Option : NC Servo |
Camless-Hydraulic Option : NC Servo |

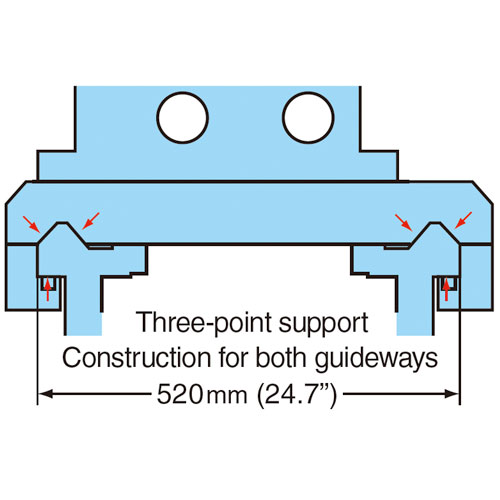

| Tool Diameter | 55mm (2.2") | 55mm (2.2") | 55mm (2.2") | 55mm (2.2") |
| Stroke | 250mm (9.84") | 250mm (9.84") | 250mm (9.84") | 250mm (9.84") |
| Back Spindle (option) | ||||
| Drive System | NC servo | NC Servo | NC Servo | NC servo |
| Max. Stroke | 150mm (5.9") | 150mm (5.9") | 150mm (5.9") | 150mm (5.9") |
| Max. Collet Chuck Diameter | 16mm (0.63") | 25mm (1.0") | 32mm (1.25") | 25mm (1.0) |
| Base Machine Weight | 4,800kgs. (10,600lbs.) | 5,200kgs. (11,500lbs.) | 5,600kgs. (12,400lbs.) | 9,000 kgs. (19,800lbs.) |
| Slides | ||||
|---|---|---|---|---|
| Cross Slides | Without NC | 1 NC Slide | 2 NC Slides | 3 NC Slides |
| Drive system | Camless-Hydraulic | Camless-Hydraulic | Camless-Hydraulic | Camless-Hydraulic |
| Stroke -Pos. 1 | 25mm (1.0") for cutt-off | 25mm(1.0") for cut-off | 25mm(1.0") for cut-off | 25mm(1.0") for cut-off |
| -Pos. 2 | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") |
| -Pos. 3 | 40mm (1.6") | N/A | N/A | N/A |
| -Pos. 4 | 25mm (1.0") | N/A | N/A | N/A |
| -Pos. 5 | 25mm (1.0") | 25mm (1.0") | N/A | N/A |
| -Pos. 6 | 25mm (1.0") | 25mm (1.0") | 25mm(1.0") | N/A |
| NC Slides | ||||
| -Pos. 4 X-Axis Stroke | N/A | 120mm (4.7") | 120mm (4.7") | 120mm (4.7") |
| -Pos. 4 Z-Axis Stroke | N/A | 120mm (4.7") | 120mm (4.7") | 120mm (4.7") |
| -Pos. 5 X-Axis Stroke | N/A | N/A | 70mm (2.8") | 70mm (2.8") |
| -Pos. 5 Z-Axis Stroke | N/A | N/A | 60mm (2.4") | 60mm (2.4") |
| -Pos. 6 X-Axis Stroke | N/A | N/A | N/A | 50mm (2.0") |
| -Pos. 6 Z-Axis Stroke | N/A | N/A | N/A | 50mm (2.0") |
