Jagular Internal Grinders

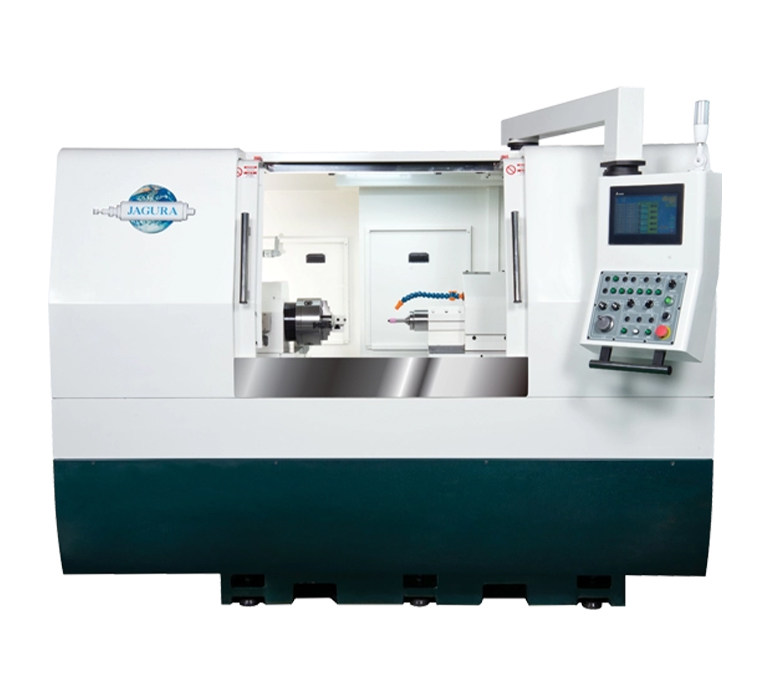

Jagular Internal Grinder

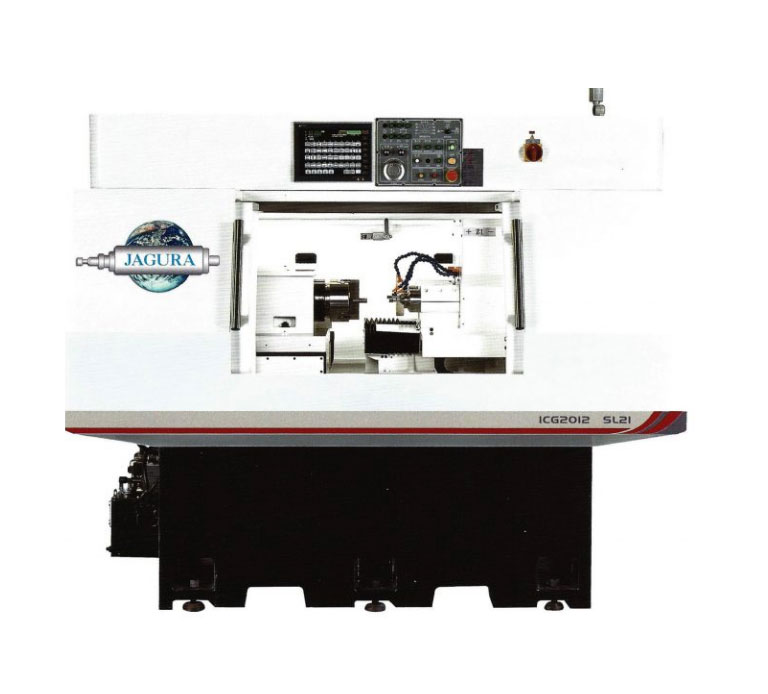

Internal Grinders

The design principle of Jagura Internal Grinding Machine Series is emphasized on operation ability and working function. The full series provide users with total solutions to completely satisfy all users’ requirements. The full series is complete with several models which are equipped with different work head swings and workpiece clamping capacity. Especially, the control system is equipped with our own dialog operation interface. It makes operation very easy.

Main Specifications

Machine Model ID Grinding Range Clamping Diameter Max. Clamped Unit Length Spindle Type Spindle Max. Speed Spindle Motor Weight
IG06 Ø 0.5–6 mm Ø 140 mm 60 mm Built-in HF 30,000–120,000 RPM 230W 1000 kg
IG50 Ø 1.5–50 mm Ø 140 mm 100 mm Oil grease 0–55,000 RPM 1 HP 1100 kg
IG80 Ø 1.5–80 mm Ø 200 mm 100 mm Oil grease alt. 10,000–50,000 RPM 3 HP × 4Ø 2300 kg
IG150 Ø 6–150 mm Ø 200 mm 150 mm Oil grease alt. 10,000–50,000 RPM 3 HP × 4Ø 3500 kg
IG35100 Ø 20–150 mm Ø 350 mm 1000 mm Oil grease alt. 10,000–50,000 RPM 3 HP × 4Ø 6500 kg
IG35150 Ø 20–150 mm* Ø 350 mm* 1000 mm* Oil grease alt. 10,000–50,000 RPM 3 HP × 4Ø —
IG35200 Ø 20–150 mm* Ø 350 mm* 1000 mm* Oil grease alt. 10,000–50,000 RPM 3 HP × 4Ø —

(X & Z axes: ball screw + servo · positioning ±0.001 mm · Control: Easy CNC (Delta) or CNC (Mitsubishi))
