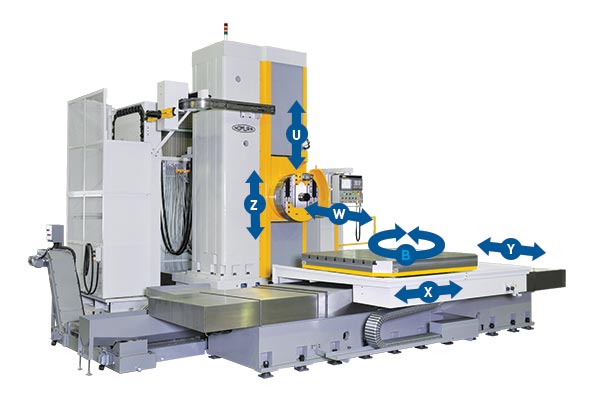

NOMURA HORIZONTAL BORING AND MILLING MACHINES
Main Specifications
| Model |
FB-70TR3 |
FB-100PR5 |
| Face Plate Diameter |
27.6" |
39.4" |
| Face Plate Slide Travel |
7.9" |
11.8" |
| Max. Facing Diameter |
39.4" |
59" |
| Face Plate Speed |
4~350 rpm |
4~280 rpm |
| Spindle Diameter |
4.3" |
4.3" |
| Spindle Travel |
19.7" |
19.7" |
| Spindle Speeds |
15~1,500 rpm |
15~1,225 rpm |
| Table Cross Traverse |
78.7" |
118" |
| Headstrock Vertical Travel |
51.2" |
78.7" |
| Table/Column Longitudinal Travel |
55.1" |
47.2" |
| Table Size |
55" x 63" |
71" x 79" |
| Main Motor |
VAC 20/25HP |
VAC 20/25HP |
| Controlled Axis |
6 |
6 |
