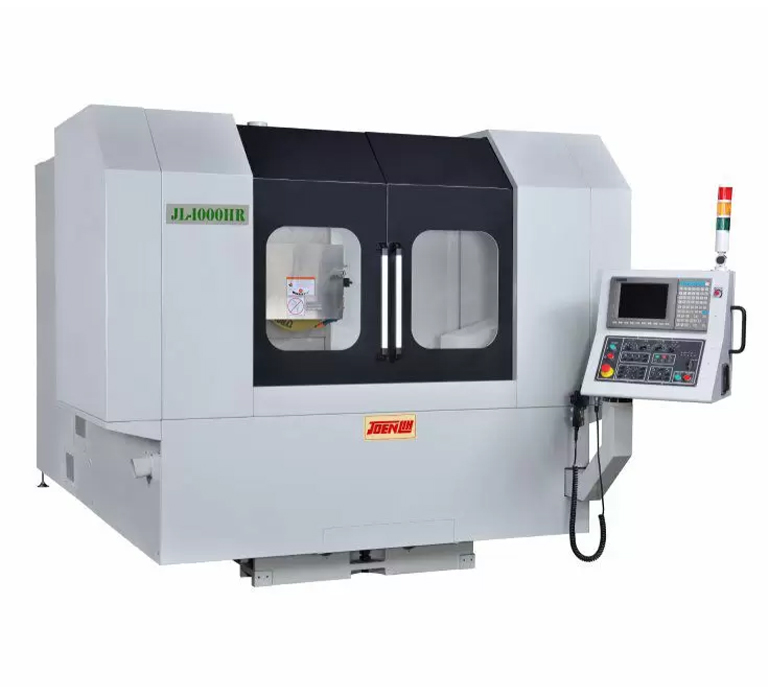

Joen Lih Rotary Grinders
Rotary Grinders
Joen Lih combines an upright design with rotary motion, making it widely applicable across various industries. The vertical structure of this machine allows it to adapt to confined workspaces, while its rotary motion capability enables flexible processing of workpieces in different directions and angles.
Main Specifications
| Specification | JL-63CNC-BL | JL-1000HR | JL-800CNC | JL-1200CNC |
|---|---|---|---|---|
| Structure Type | Horizontal Rotary (Saddle + Rotary Table) |
Horizontal Rotary (Cross + Vertical Axes) |
Vertical Rotary (Double Column) |
Vertical Rotary (Double Column) |
| Control Type | CNC — 2-axis (Longitudinal + Vertical) Bearing-type rotary table (hydrostatic opt.) |
CNC — 2-axis (Cross + Vertical) Hydrostatic rotary table |
CNC — 3-axis (Longitudinal + Vertical + Rotary Table) Siemens / Fanuc / Syntec / Delta |
CNC — 3-axis (Longitudinal + Vertical + Rotary Table) Siemens / Fanuc / Syntec / Delta |
| Max. Surface Ground | Wheel: 355×50×127 mm Electromagnetic chuck: Ø600×50 mm |
Wheel: 405×50×127 mm Electromagnetic chuck: Ø1000×120 mm |
Wheel: 570×20×20 mm Electromagnetic or vacuum chuck Spindle grinding dia: Ø800 mm |
Wheel: 570×20×20 mm Electromagnetic or vacuum chuck Spindle grinding dia: Ø1200 mm |
| Spindle to Table Distance | 500 mm | 600 mm | 250 mm | 250 mm |
| Spindle Motor (HP) | 7.5 HP (Opt. 10 HP) | 15 HP (Opt. 25 HP) | 30 HP | 30 HP |
| Machine Net Weight | 6,200 kg | 10,000 kg | 5,500 kg | 6,500 kg |
