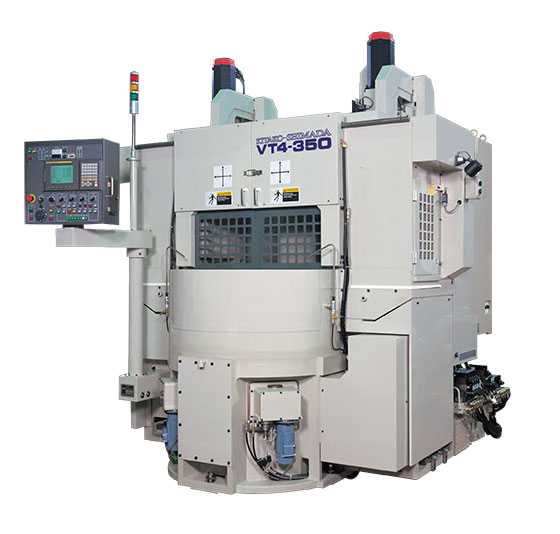

Shimada-Kitako 4-Spindle Vertical CNC Lathe
VT4-350 Productive CNC 4 Spindle Vertical Lathe
- Part loading/unloading time is ZERO.
- As a FM cell, the machine facilitates automization of a manufacturing line.
- Vertical design enables handling of heavy workpieces.
- Loading spindle is covered to protect from coolant and chips.
- Spindle offset function compensates for earrors between spindles in the microns.
- Spindle speeds can be independently controlled for each spindle.
Features

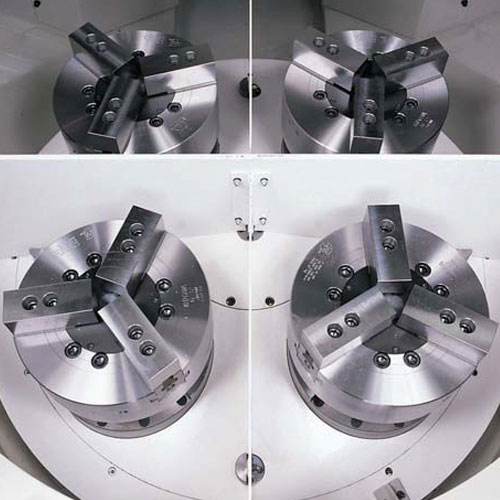

4 Spindle Unit, 2 Machine While 2 Are Loaded

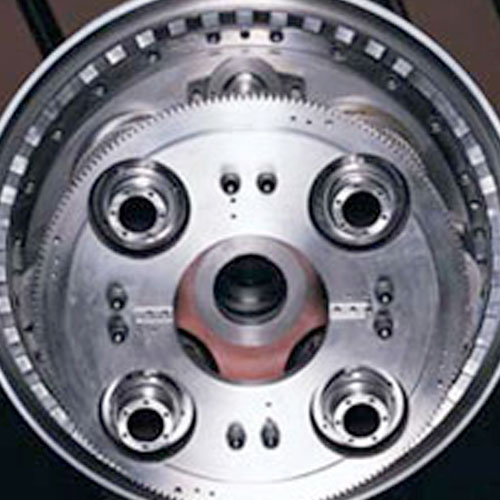

High Accuracy Indexing

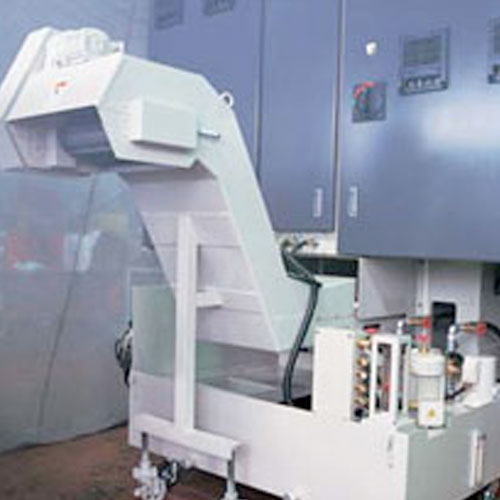

Chip Conveyor

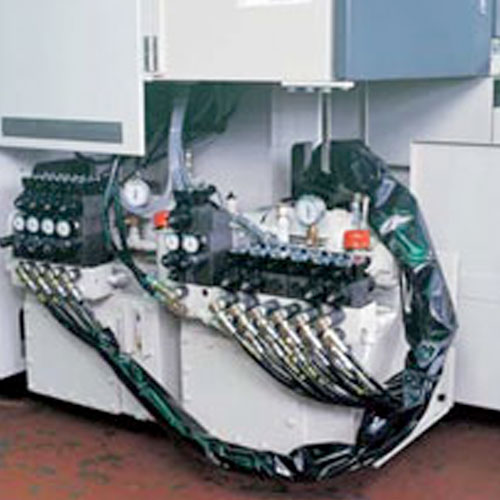

Hydraulic Unit

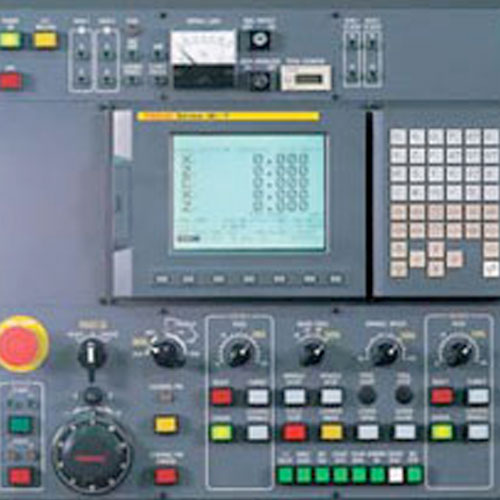

Centralized Operation Panel
Main Specifications
| Model | VT4-350 |
|---|---|
| Max. Turning Diameter | 13.8" |
| Max. Turning Length | 7.9" |
| X-Axis Stroke | 12" |
| Z-Axis Stroke | 18" |
| X-Axis Rapid Feed | 788"/min. |
| Z-Axis Rapid Feed | 788"/min. |
| Spindle Speed Range | 3200 rpm |
| Number of Spindles | 4 |
| Spindle Nose | ASA A2-8 |
| Carrier Index Time | 180° / 6.0sec. 90°/ 5.0sec. |
| Turret Tool Capacity | 8 (OD:4, ID:4) |
