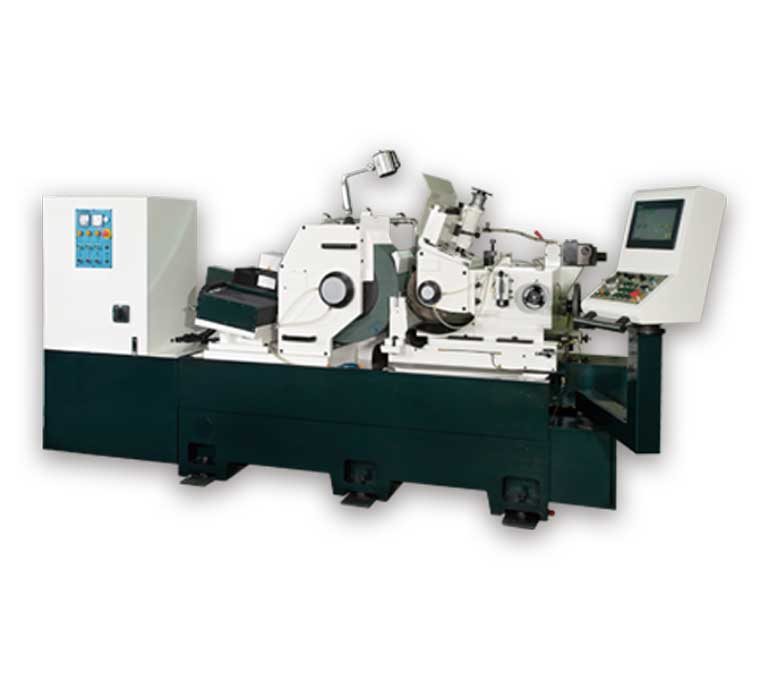

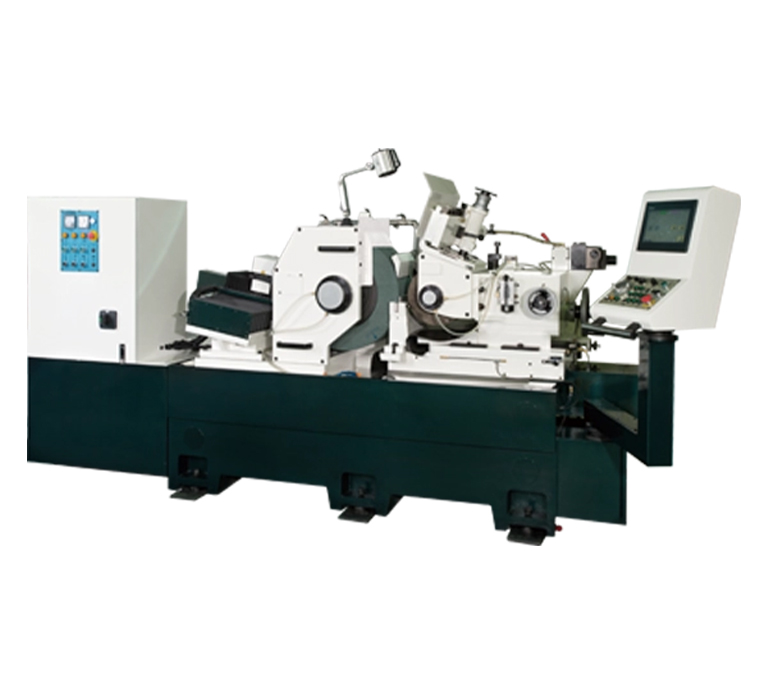

Centerless Grinders

The design principle of Jagura Cylindrical Grinding Machine Series is emphasized on operation ability and working function. The full series provide users with total solutions to completely satisfy all users' requirements. The full series is complete with several models which are equipped with various center distances and center heights. Especially, the control system is equipped with our own dialog operation interface. It makes operation very easy.

Main Specifications

Model	Control Variants Available	Grinding Range (dia)	Grinding Wheel – Dia × Width × Bore	Regulating Wheel – Dia × Width × Bore	Grinding Wheel Motor	Regulating Wheel Motor	Net Weight (SP/CNC)
JAG-12C	SP · CNC · Easy CNC	1–30 mm	305×150×120 mm	205×150×90 mm	7½ HP 4P	Hydraulic	1600 kg
JAG-18C	SP · CNC	1–50 mm	455×205×228.6 mm	255×205×111.2 mm	15 HP 4P	Hydraulic	3000 kg
JAG-1810C	SP · CNC	1–50 mm	455×255×228.6 mm	255×255×111.2 mm	15 HP 4P	Hydraulic	3100 kg
JAG-1812C	SP · CNC	1–50 mm	455×305×228.6 mm	255×305×111.2 mm	15 HP 4P	Hydraulic	4858 kg
JAG-20C	SP · CNC	1–60 mm	510×205×304.8 mm	305×205×127 mm	20 HP 4P	Hydraulic	4100 kg
JAG-2010C	SP · CNC	1–60 mm	510×255×304.8 mm	305×255×127 mm	20 HP 4P	Hydraulic	4200 kg
JAG-2012C	SP · CNC	1–60 mm	510×305×304.8 mm	305×305×127 mm	20 HP 4P	Hydraulic	5558 kg
JAG-24C	CNC	1–80 mm*	510×205×304.8 mm*	305×205×127 mm*	20 HP 4P*	Hydraulic*	—
JAG-2410C	CNC	1–80 mm*	510×255×304.8 mm*	305×255×127 mm*	20 HP 4P*	Hydraulic*	—
JAG-2412C	CNC	1–80 mm*	510×305×304.8 mm*	305×305×127 mm*	20 HP 4P*	Hydraulic*	—

(Control variants: SP = Variable Speed · CNC = Ball screw+servo ±0.001 mm · Easy CNC = 1-axis simplified)
