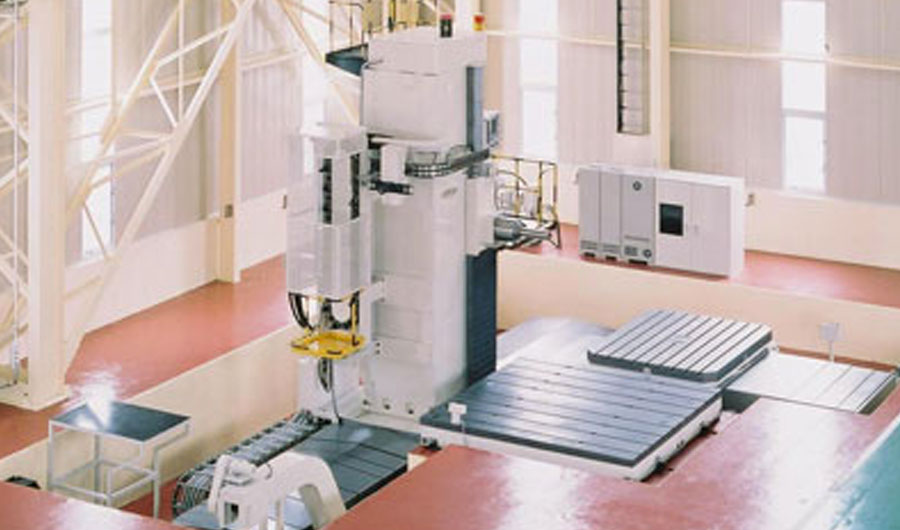

NOMURA HORIZONTAL BORING AND MILLING MACHINES
Main Specifications
| Model |
BN-135QF |
BN-150QF |
| Type |
5" Floor Type |
6" Floor Type |
| Spindle |
|
|
| Spindle Diameter |
5.31" |
5.91" |
| Spindle Speed |
3~1,000 rpm |
3~1,000 rpm |
| Spindle Taper |
7/24 Taper No 50 |
7/24 Taper No 50 |
| Max. Spindle Torque |
2,567 ft-lbs |
3,616 ft-lbs |
| Max. Spindle Thrust |
6,600 Lbs |
6,600 Lbs |
| Travel |
|
|
| X Axis (table cross traverse) |
157.5"~393.8" |
157.5"~393.8" |
| Y Axis (headstock vertical travel) |
78.7"~137.8" |
78.7"~137.8" |
| Z Axis (column longitudinal travel) |
27.6"/Spindle |
35.4"/Spindle |
| W. Axis (spindle travel) |
13.8"/Quill |
15.6" Quill |
| Table |
|
|
| Table Size |
Option |
Option |
| Feed |
|
|
| Rapid Traverse of X,Y and Z Axes |
236"/min (X&Y) |
236"/min (X&Y) |
| Rapid Traverse of W Axis |
157"/min (Z&W) |
157"/min (Z&W) |
| Feed Rate |
0.04"/min ~118"/min |
0.04"/min ~118"/min |
| Motor |
|
|
| Spindle Drive Motor |
VAC 40/30HP |
VAC 40/30HP |
